Olist Data Modeling

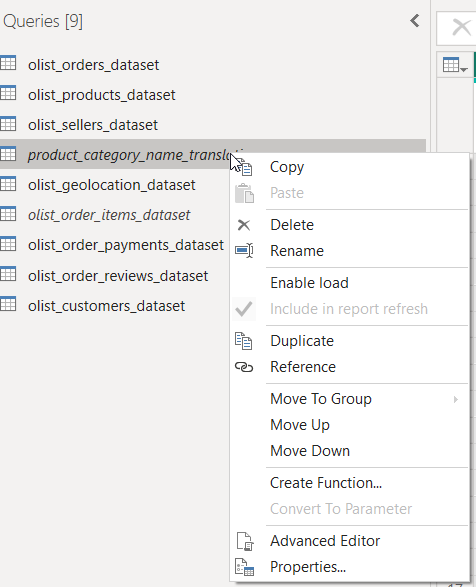

Disable Load on Staging Queries: Staging tables used only for lookups or merged steps should not be loaded into the database. In the Power Query Editor left panel, right-click the product_category_name_translation query and uncheck Enable Load. Repeat this exact step for the olist_order_items_dataset query.

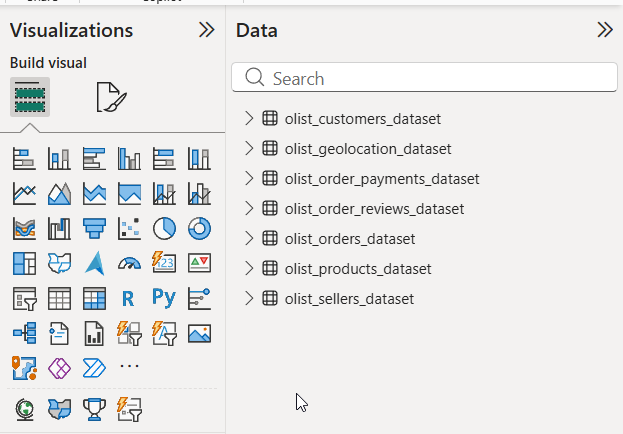

Verify Loaded Tables Count: Click Close & Apply. On the main Power BI report workspace, examine the **Data panel** on the right side. You should see exactly **seven tables** loaded into the data model. The intermediate queries (`olist_order_items_dataset` and `product_category_name_translation`) have been successfully excluded.

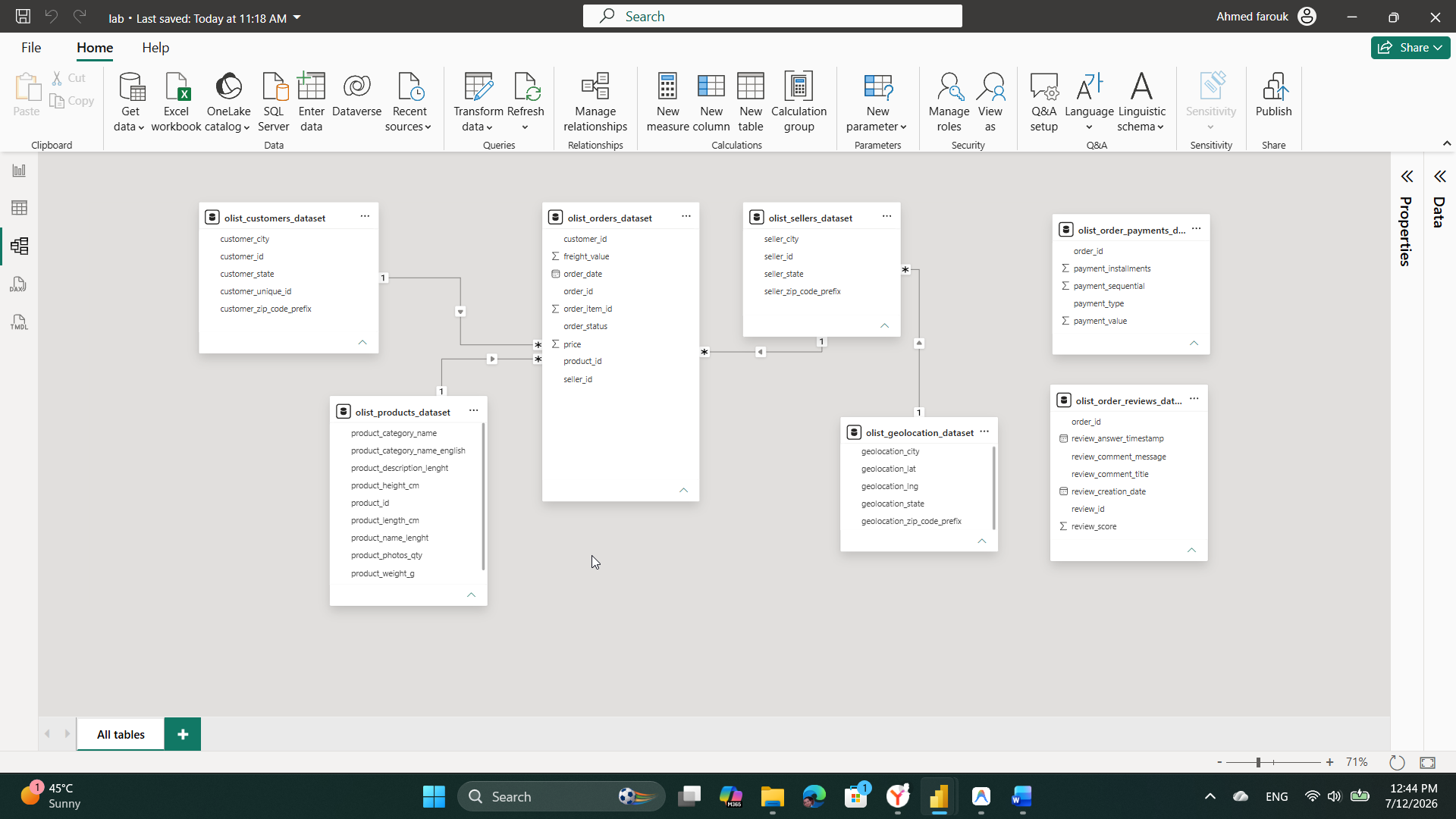

Set Up Active Relationships: Switch to the Model view in Power BI. Drag relationships between keys to build your active schema:

• Link customer_id in olist_customers_dataset (1) to customer_id in olist_orders_dataset (*)
• Link product_id in olist_products_dataset (1) to product_id in olist_orders_dataset (*)
• Link seller_id in olist_sellers_dataset (1) to seller_id in olist_orders_dataset (*)
• Link geolocation_zip_code_prefix in olist_geolocation_dataset (1) to seller_zip_code_prefix in olist_sellers_dataset (*)

Understand Cardinailty & Direction: Each relationship should default to a **One-to-Many (1:*)** relationship with a **Single** cross-filter direction, where filters flow from the dimension lookup tables (e.g. Products, Customers, Sellers) down to the central transactional table (Orders).

Why Leave Payments and Reviews Floating? Notice that the olist_order_payments_dataset and olist_order_reviews_dataset tables are left unconnected.

Rationale: Because we merged orders with items in-place (in `olist_orders_dataset`), the fact table's grain is at the line-item level (multiple rows per order). Since orders can also have multiple split payments or reviews, linking them on order_id directly would establish a complex **Many-to-Many** relationship. Keeping them floating prevents circular filter paths and performance drops. Transaction details can still be related dynamically inside specialized DAX measures when required.

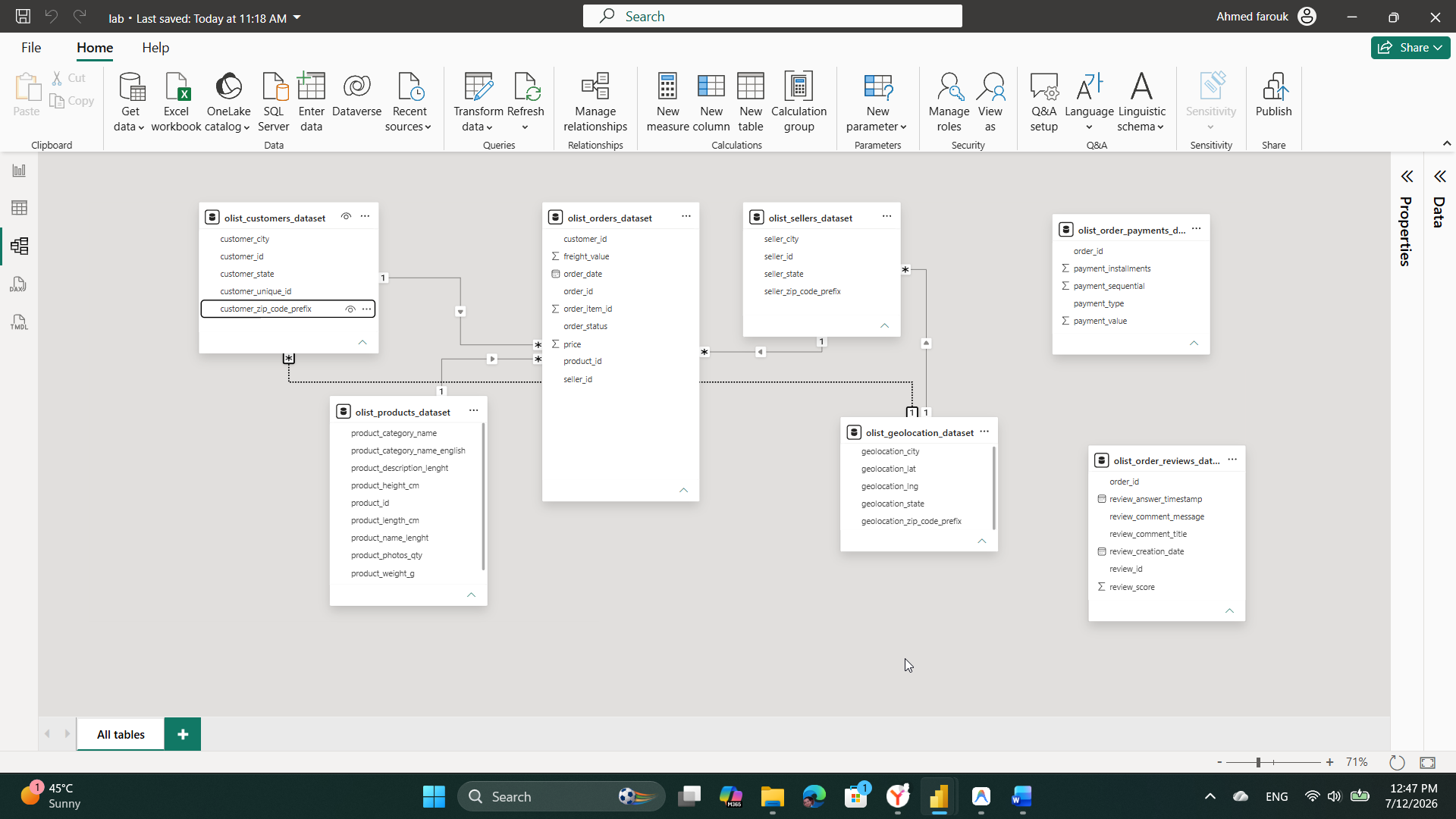

Create Inactive Customer Geolocation Path: Drag a relationship line from customer_zip_code_prefix in the olist_customers_dataset table to geolocation_zip_code_prefix in the olist_geolocation_dataset table. Because the model already contains an active path from Geolocation to Customers (via Sellers → Orders), Power BI will automatically create this new link as an **inactive relationship** (represented by a dashed line).

Why Use Inactive Relationships? Active relationships enforce a single path for automatic filtering. To avoid circular dependency ambiguity, Power BI restricts alternative paths. However, this inactive link can be activated dynamically in DAX using the USERELATIONSHIP() function when performing calculations based on customer locations rather than seller locations.
